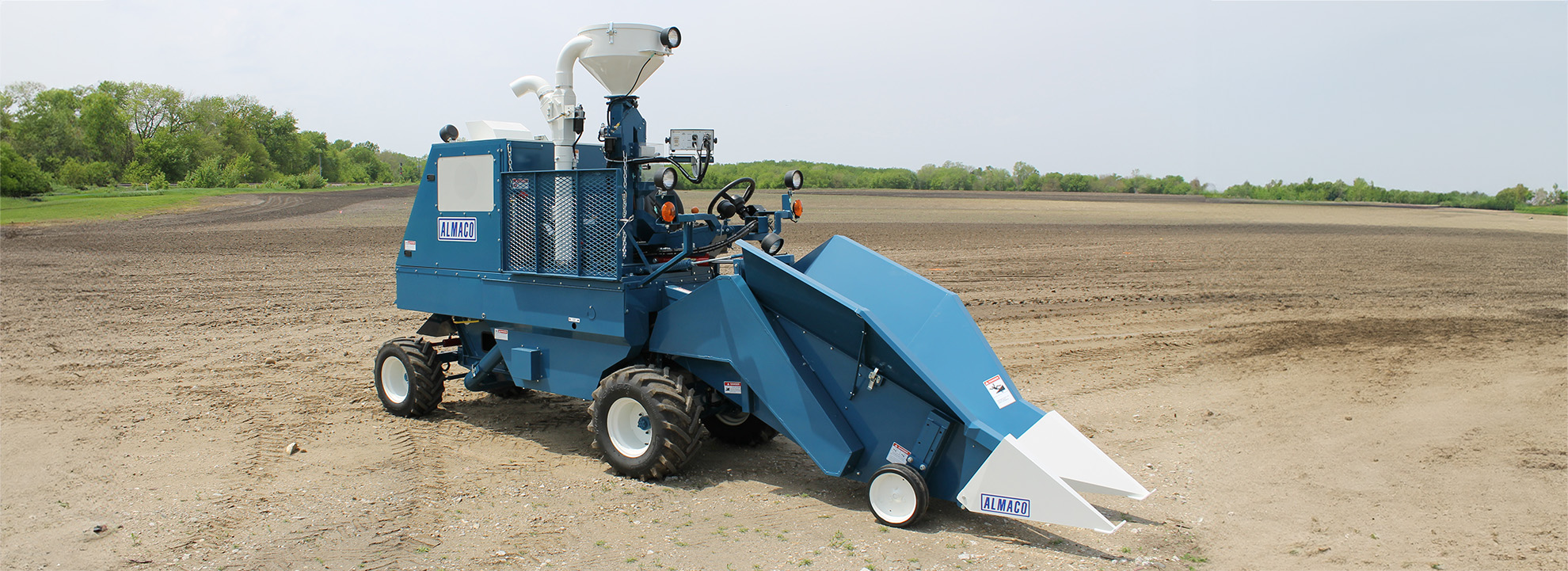

HP5 Single-Row Plot Combine

In a class of its own, ALMACO HP5 is the world’s only one-row, multi-crop combine designed specifically for seed research. Multiple interchangeable headers adjust to most crop types: Standard Platform Header, Single-Row Row Crop Header, and Single-Row Corn Header. Its compact size and low weight provide maximum maneuverability and easy transportation. The narrow wheelbase and one-person operating system are ideal for harvesting up to 30,000 single-row plots per season of micro, hill, or nursery plots. The small frame of the HP5 provides big performance with a powerful Deutz air-cooled diesel engine. The extended single sieve promotes excellent crop exposure for complete separation and recovery.

Features

Specifications

  • Length
    16’
  • Width
    52”
  • Height
    87”
  • Weight
    3,400 lbs
  • Hydrostatic
    Forward/Reverse
  • Deutz Engine
    40hp
  • Fuel Tank
    11 gal
  • Brakes
    Hydraulic Fail-Safe
  • Front Tires
    26 x 12 x 12
  • Power Steer Rear Tires
    23 x 10.5 x 12
  • Speed
    400 – 1100 rpm
  • Mechanical Cylinder
    8 Metal Raspbar
  • Cylinder Diameter
    13.25”
  • Cylinder Length
    17.5”
  • Operator Capacity
    1 Person
  • Delivery to Driver
    Pneumatic
  • Hydrostatic
    0 – 7 mph
  • Header Height Control
    Mechanical
  • Compatible Headers
    1-Row Corn, 1-Row Row Crop, and Platform Heads

For additional specifications, please contact us today!
